Iconic Masterframebuilder Geoff Scott and Paul Hillbrick decided to use their 70+ years of combined frame building knowledge and experience to engineer an affordable frame building jig to help aspiring frame builders get started easier.
Manufactured from aluminum tooling plate the jig uses 150mm centre heights off the backing plate.

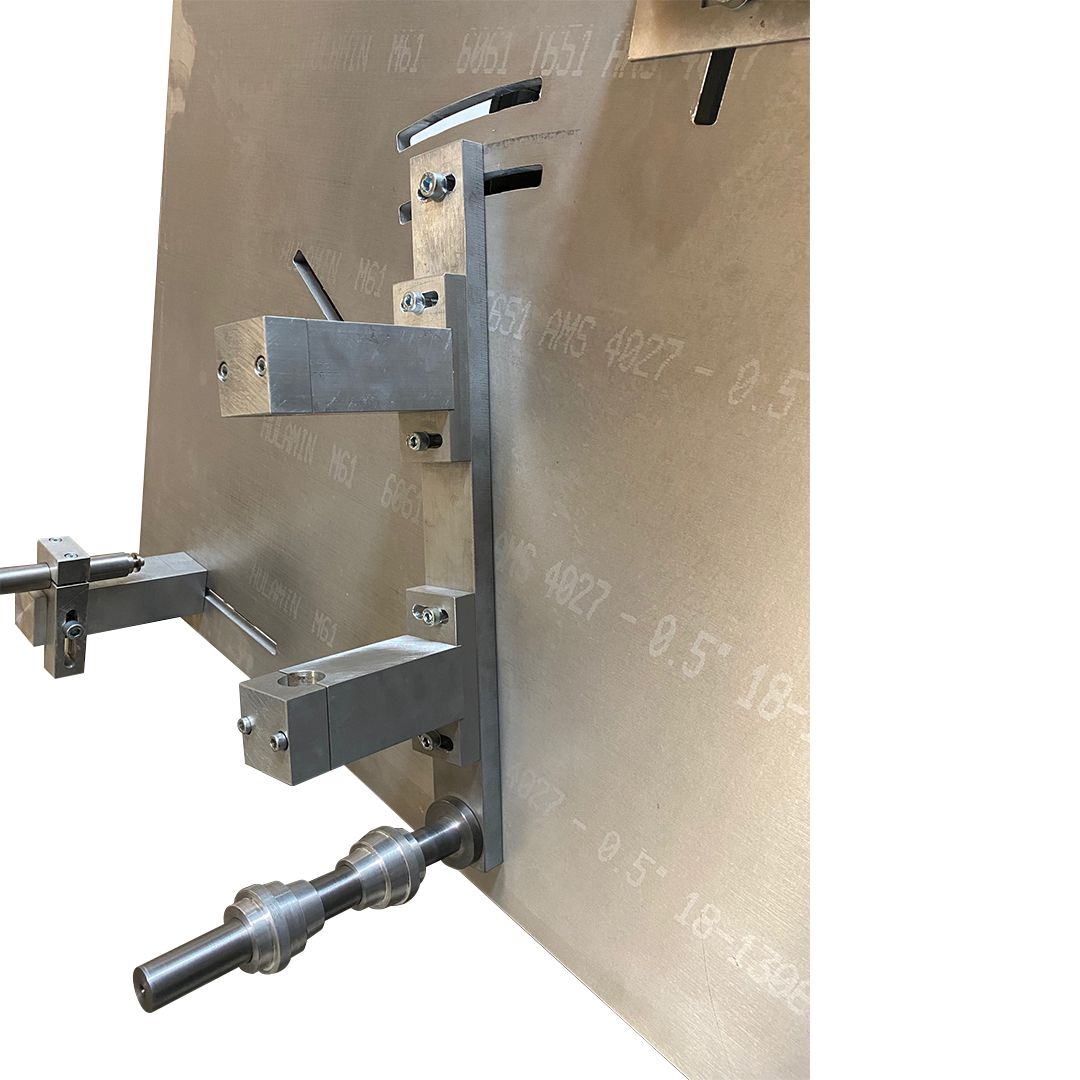

Fully adjustable and the seat tube holder uses independently adjustable tube holders to suit curved seat tubes. Various diameter tube holder blocks are available for purchase.

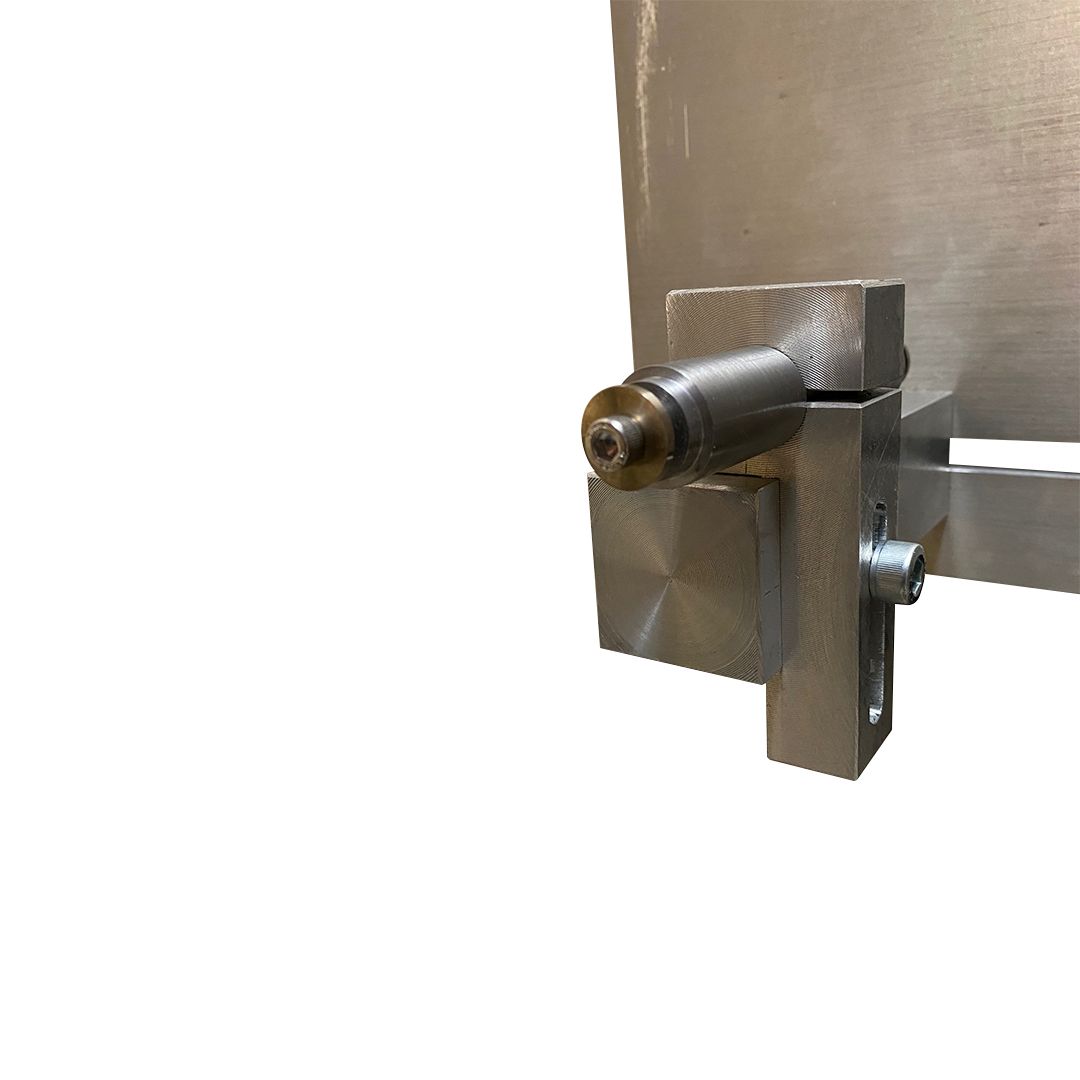

The head tube uses tapered collars to suit the range of different head tubes in the market.

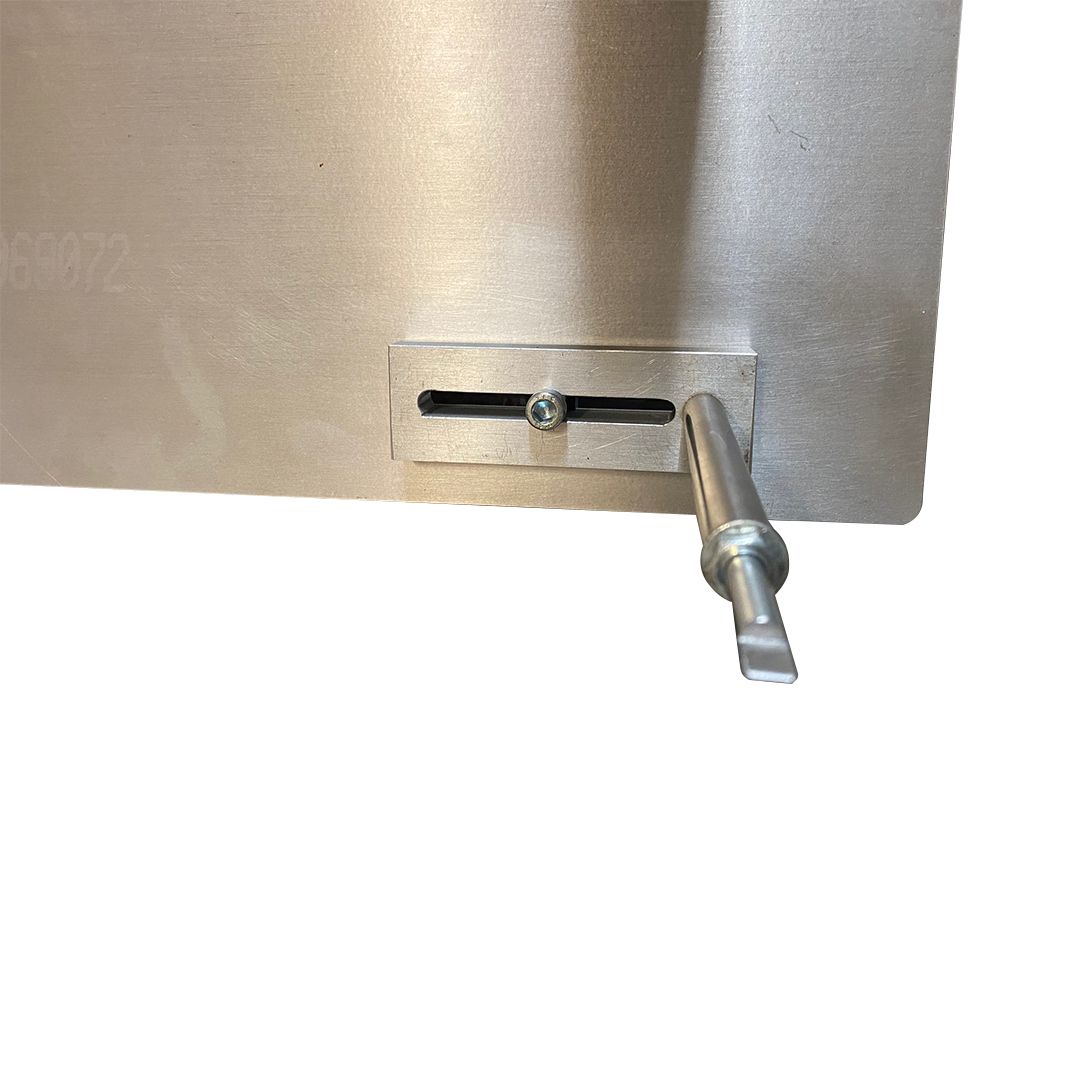

The rear axle assembly is designed to be interchangeable with seperately purchased rear axles to cover 120,130,135mm & 142 and 148mm thru axles.
A sturdy bottom bracket assembly that suits traditional of T47 bottom bracket shells ensures that frames come off the jig as true as possible.
Freight prices quoted at cost seperately. For more information feel free to contact Hillbrick Bicycles on 02 4648 4002 or 0432 373 238.
